Aquilero Three:

Description

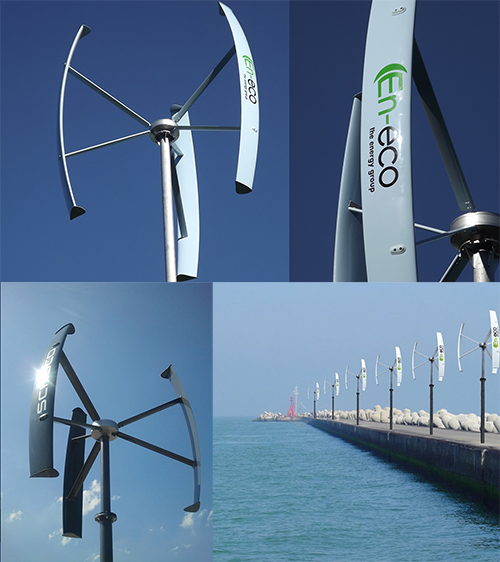

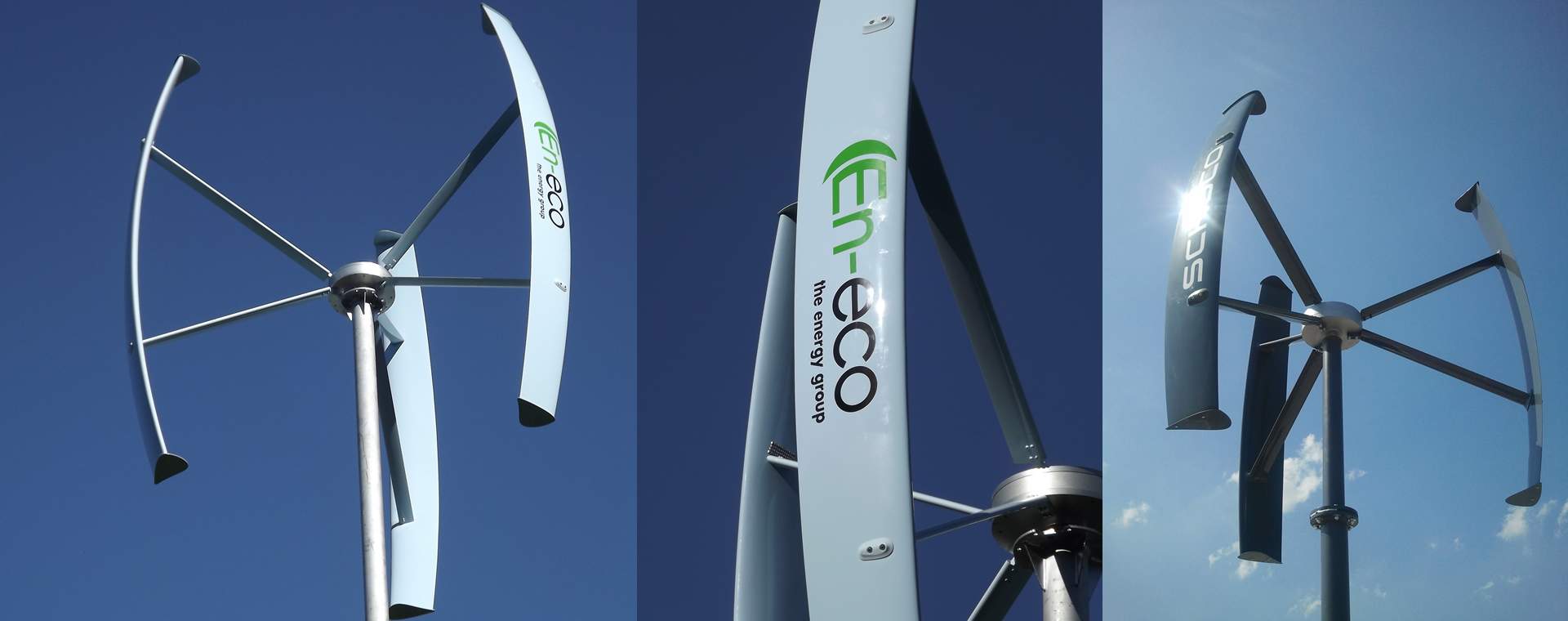

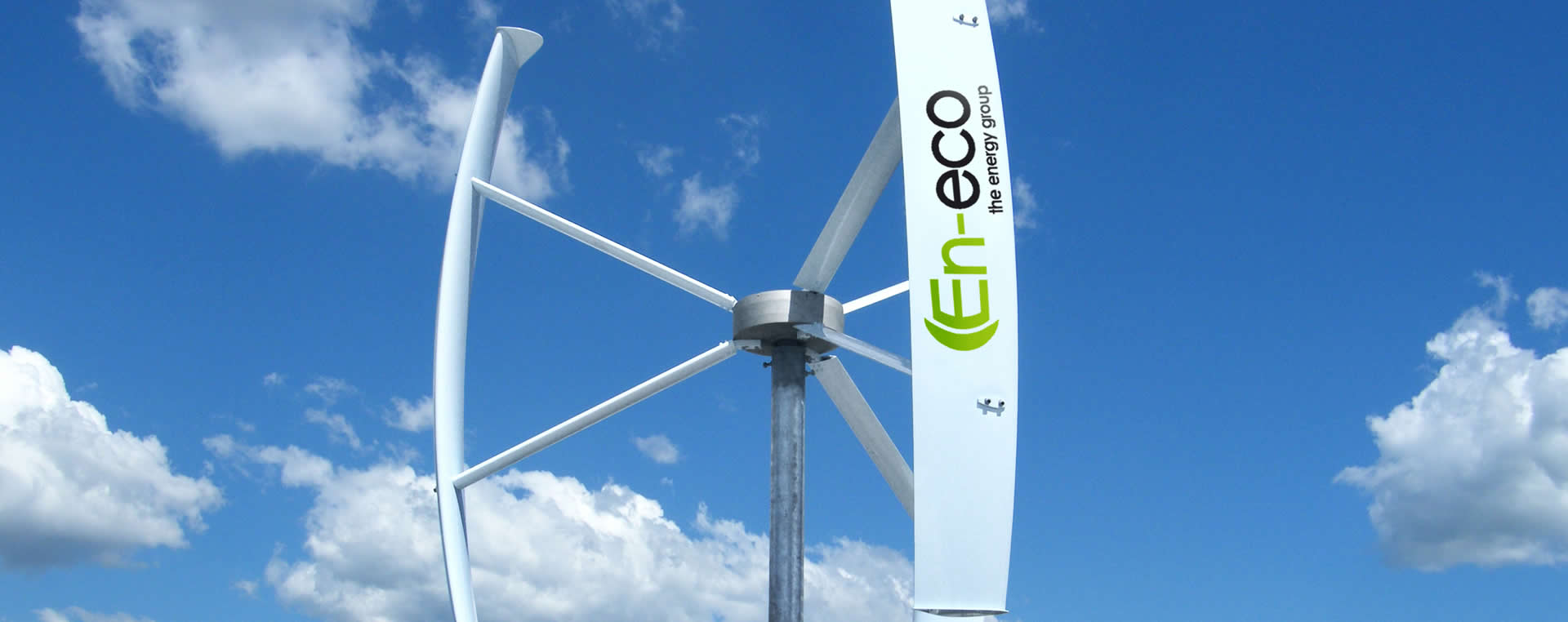

Skyline Three is a power of 3 kW turbine that thanks to its small size and attractive design has a great versatility, and can be installed in the city as in the most isolated places. With a gentle, yet effective visual impact, the Skyline Three turbine can be installed for promotional purposes, communicating respect for the environment and attention to new technologies. The Skyline Three turbine covers small and medium energy requirements can be installed in series to meet the need for increased consumption, such as those of cottages, seaside resorts and small and medium-sized enterprises.

High-end Technology for the best performance
AQUILERO wind turbines have highly distinctive characteristics: the use of technologically advanced materials such as carbon fibre, high resistance parameters, reduced dimensions and weight, and excellent performance even with moderate wind. AQUILERO VAWT technology allows a turbine to catch wind coming from every direction with a virtually nonexistent acoustic impact.

Unique Design for multiple applications
The AQUILERO line has a unique design, turning wind turbines into pleasant architectonic elements, which can therefore find a wide range of applications and fit urban and suburban environments. The carbon fiber blades can be also be personalized according to clients’ needs.

Wind Power Made Easy

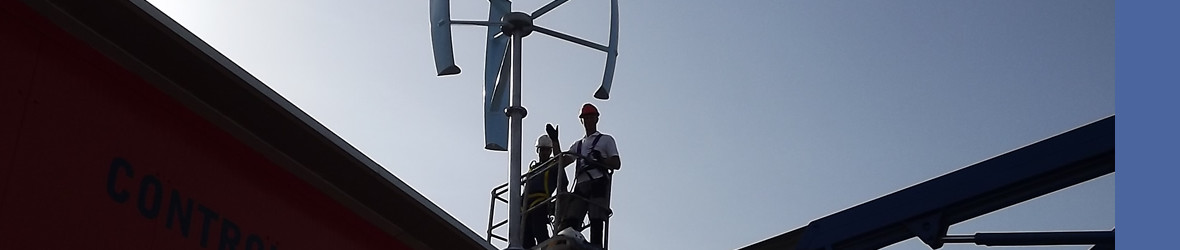

Installing AQUILERO wind turbines is quick and easy. Startup and energy production can be monitored from the very first day. Our headquarters provide constant support from feasibility study to installation, including post-sale assistance guaranteed for 2 years.



Dimensional Specifications
Average diameter: 3,2m
Height: 3,5m
Swept area: 11,2 mq
Weight: 190 Kg
Materials Specifications
Blades: composite (carbon fiber)
Arms: aluminium
Alternator: aluminium (armor)
Specifications of the generator
Alternator: axial flux and permanent magnets synchronous alternator (NdFeB)
Alternator (weight): 68Kg
Drive: direct
Operational specifications
Nominal power (12m/s): 3000W
Maximum power: 3600W
Startup speed: 2m/s
Initial production speed: 3m/s
Cut-out wind speed: 16m/s
Maximum wind speed: 42 m/s
Turbine class: IV(IEC 61400-2)
Monitoring system: MPPT control
Braking system: electromagnetic

Price:
Aquilero One is available from € 9.590.
The cost varies depending on the type of installation. For information or to request a quote, you can call
us at:
Telephone +356 2125 1111
Telefax +356 2124 6598
Email [email protected]
